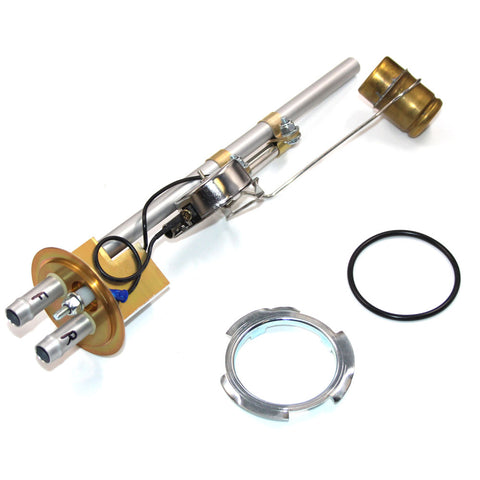

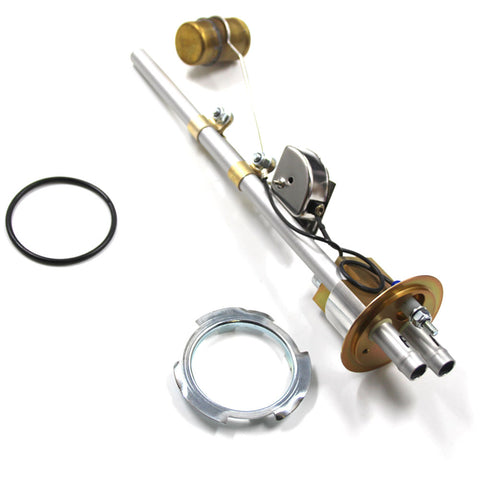

Fuel Tank Sending Unit, 1/2" High Volume Supports 450HP to 550HP, 1968-70 AMC Javelin, AMX - Ships in approx. 6-8 weeks

$369.97

Description:

P/N:  AMC-7901

This custom high flow fuel pump sending unit for 1968-70 AMC Javelin and 1968-70 AMC AMX supports engines producing up to 550HP at the crank.  If you are making 450 to 550 horsepower, then this mod is a MUST have component for your AMC.
  • For AMC-V8 engines up to 550 horsepower
  • Drop-in replacement for factory 5/16" or 3/8" sending units
  • A budget alternative to a fuel cell or weld-on sump
  • Recommended for cars with engines over 450 hp
  • Recommended for all cars with an electric fuel pump and return/bypass style regulator
  • 1/2" pickup and feed tubes reduce flow restriction to the suction side of the fuel pump
  • 1/2" return tube allows the use of a return/bypass regulator without modifying the fuel tank or switching to a fuel cell
  • Return tube can be capped off if no return line is used
  • Use with a reducer to connect 1/4" vapor return line from a mechanical pump
  • Billet aluminum base and aluminum tubes are anodized for use with gasoline or alcohol
  • Stainless fuel level sending unit works with OEM fuel level gauges (73-10 ohm)
  • Eliminates restrictive, difficult to service in-tank "sock" filter.
  • Kit Includes:  Fuel sending unit, lock ring, gasket, and instructions
  • Manufacturer Warranty: Limited Lifetime
  • Country of Origin:  USA
  • Weight:  3 pounds
  • Dimensions:  4.4 x 4.4 x 14 inches

AMC, American Motors, Rambler
Models Years
AMX w/AMC V-8 1968-1970
Javelin w/AMC V-8 1968-1970
