EFI Fuel Injection Master Kit, 400HP 4-Barrel, 1966-91 AMC, Jeep V8 (See Applications) - Drop ships in approx. 1-2 weeks


Vendor: FiTech


  • P/N:  AMC32203MK (Kits are built to order, please allow-approximately 6-10+ weeks for manufacturing plus shipping)


  • Replaces your 4-barrel carburetor with modern fuel injection
  • Instant starting & crisp throttle response, all-season / climate drivability
  • Eliminates cold start warm-ups, hard starting, sputtering, vapor lock, & interior fuel smell
  • Pre-programmed & self-tunes right out of the box
  • Lightweight cast aluminum design w/throttle body-mounted sensors & computer
  • Includes fuel command center (the easiest way to add an EFI fuel pump system to your AMC)

Additional Fuel Command Center features:

  • Low fuel level in the fuel tank will not result in pump starvation when the vehicle is on a steep incline
  • Generally mounted in the engine compartment, but can be attached on the vehicle's chassis
  • Supplied high-pressure hose includes 5 ft. of high-quality EFI -06 fuel line and fittings for plumbing from the Fuel Command Center to the EFI throttle body

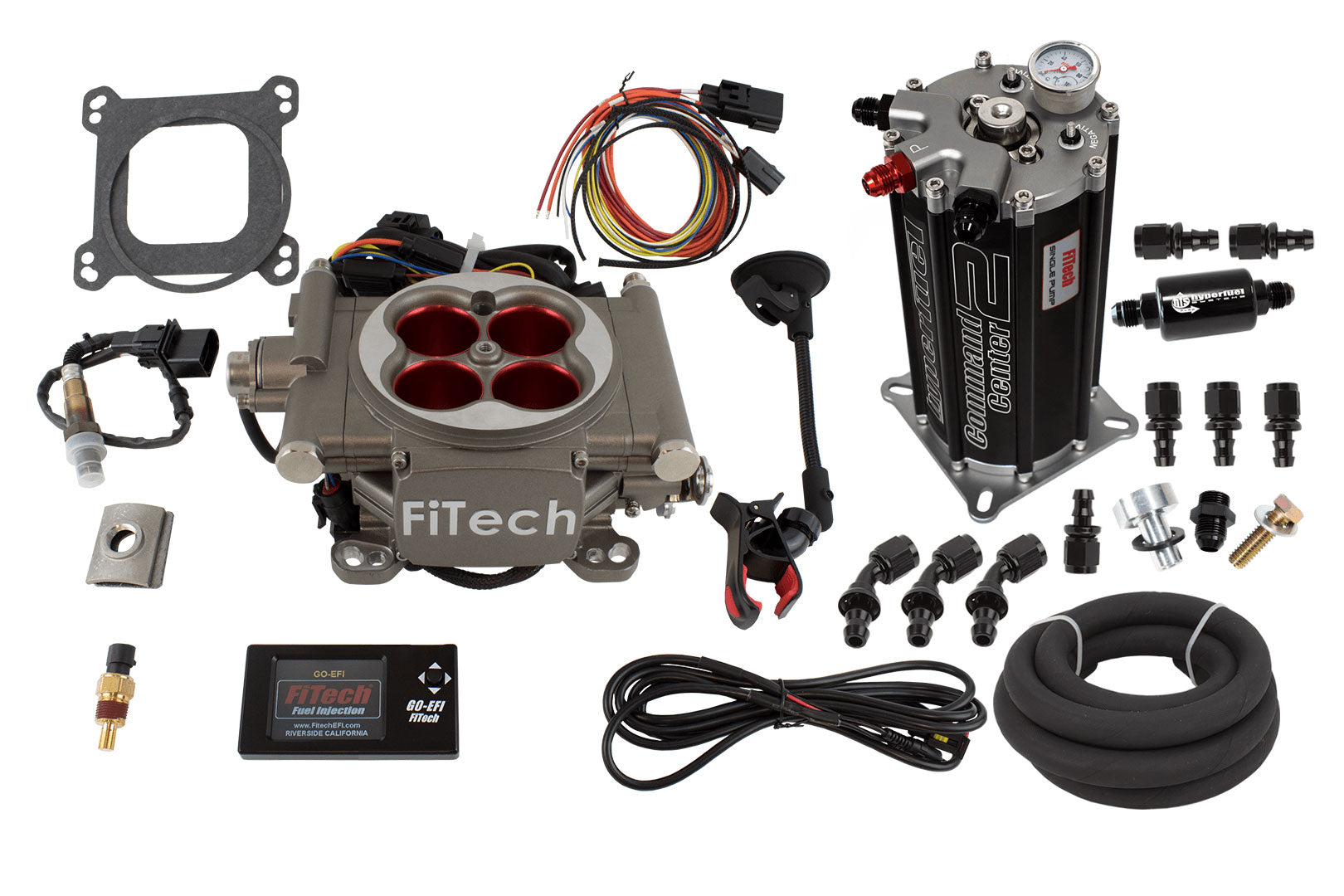

  • Includes:  Cast aluminum throttle body drilled for square bore & quadrajet intakes, fuel rails w/-06AN fuel inlet fitting, flow matched 55-Lb./hour fuel injectors, ECM with calibration module & onboard fuel pump driver & OBD-II style diagnostics, handheld touchscreen controller w/windshield mount, plug and play wiring harness, Bosch 4.2 wideband 02 sensor & clamp-on 02 bung kit, fuel pressure regulator, GM type MAP sensor, GM type TPS sensor, GM type IAC motor, GM type coolant temperature sensor, GM type adjustable control fan switch, gasket kit, fuel command center, sump tank Assembly with 340 L/PH fuel pump, regulator, pressure gauge, EFI fuel filter, 5 feet high quality EFI rated hose & fittings to connect sump tank to throttle body, installation instructions
  • Vacuum Requirements:  Designed for applications making at least 6 inches of vacuum at idle
  • Intake Manifold Compatibility:  Works with factory & aftermarket AMC 4-barrel intake manifolds
  • Air Cleaner Compatibility: Fits air cleaners with 5 1/8" neck flange
  • Ignition System Compatibility:  Tach input reads signal from coil, HEI, MSD/CDI ignitions
  • ECU Computer Features:  Mounted on throttle body, no firewall holes to drill & no harnesses draped over your engine.  Voltage control fuel pump control (reduces voltage to the pump under low load conditions such as idle & cruise reducing noise & heat)
  • Fuel Atomization Type:  Annular discharge design for complete fuel atomization
  • Linkage Compatibility:  Fits throttle & trans linkage for 4150 Holley carburetor
  • Sensors Used:  GM sensors (replaceable at most auto parts stores.  AC input for idle compensation & 1 electric fan control
  • Fuel Compatibility: All regular & ethanol blend pump fuels
  • Warranty:  1-year parts, lifetime ECU
  • Box Dimensions:  24 x 18 x 8 inches
  • Weight:  20 lbs.
  • Finish:  Satin
  • Fits:
    • All 1966-1991 AMC V8 engines with 4-barrel carburetor

Installation:  Takes approximately 1 day with basic hand tools.  Professional installation recommended. Requires separate return fuel line purchase.
