Coil-Over Conversion System, Front, 1970-83 AMC (See Applications) - Drop ships in approx. 2-4 weeks



P/N CO-100001
  • Dramatically improve handling, steering response, and serviceability
  • Precision CAD designed to directly bolt-in with no cutting or welding

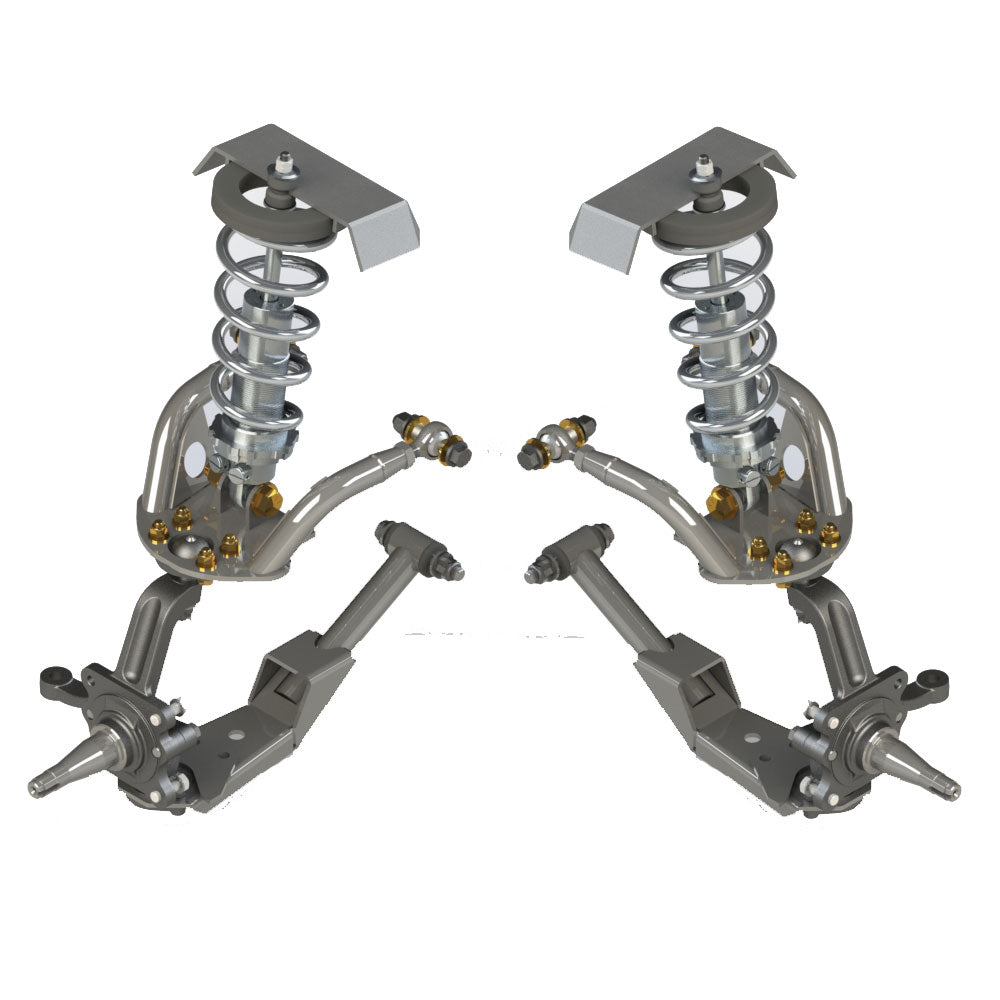

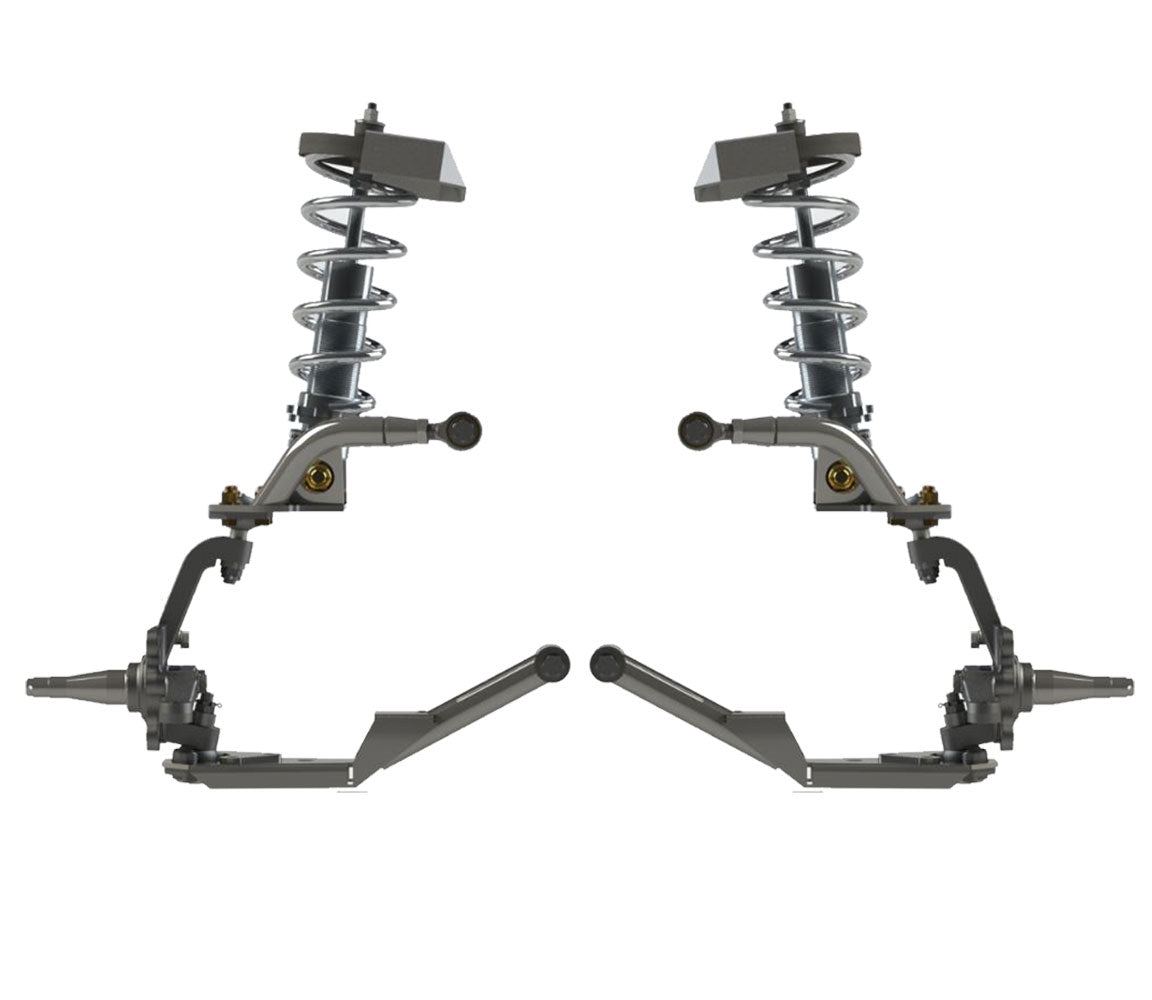

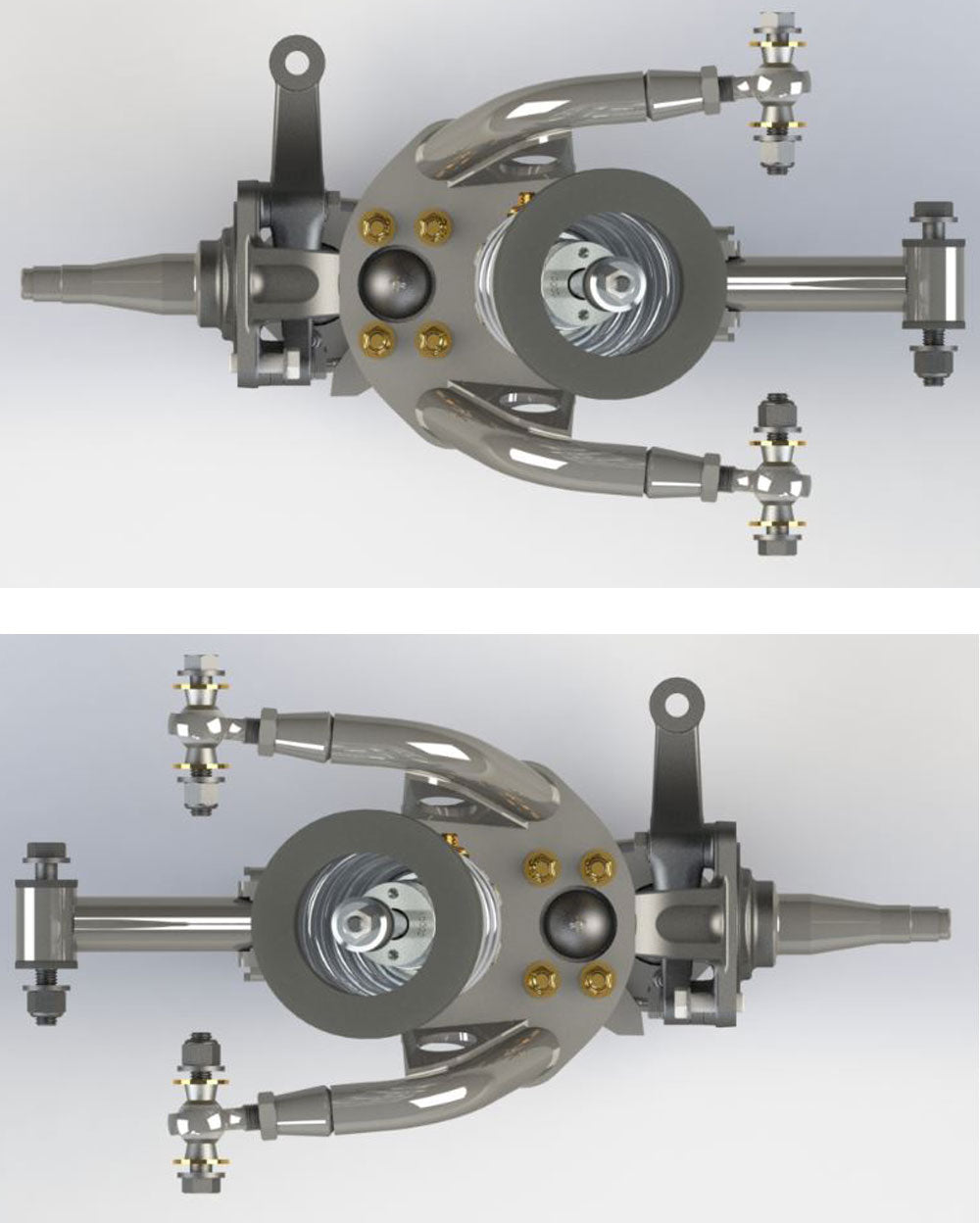

  • Includes:  CNC precision cut and bent DOM seamless round tube upper & lower control arms, fully adjustable upper control arms – Up to 6-degrees of positive caster, CNC machined ball joint housings with Moog ball joints, Viking coil-over shocks & correct high tensile steel springs, laser-cut and CNC formed brackets, Polyurethane graphite impregnated spring isolators, Grade 8 hardware, gloss black powder coating, foam in-place packaging, step-by-step-instructions
  • Manufactured To Order:  Please allow approximately 2-3 weeks for manufacturing plus shipping
  • Country of Origin:  USA
  • Manufacturer Warranty:  1-Year Limited
  • Shipping weight:  65 lbs.
  • Shipping box dimensions:  24"x12"x12"
  • NOTE:  Some drilling may be required.  NOT available for pre-1970 AMC / Ramblers with trunnion front suspension.  However, a full independent front suspension system is available for these applications, please email us for details.

A lot of ’60s and ’70s vehicles had sloppy front end control. The stamped upper and lower control arms with rubber bushings flex a lot, over every bump and around every turn.

Our bolt-in front coil over conversion system for AMC vehicles adds handling, safety, control, and performance by controlling flex, managing spring travel, dampening harsh road conditions and correcting some of the factory geometry. The supplied tubular control arms include a fully adjustable upper control arm, allowing up to 6-degrees of positive caster. The tubular arms are made of seamless DOM steel, ball joint housings are custom CNC machined, and our bushings are custom polygraphite that will not squeak or prematurely wear. The adjustable upper control arm rod ends are chromoly and US-made. Ball joints are made by Moog. This system is a direct bolt-in and does not require any welding or cutting.

There are other-coil over conversions in the marketplace, but ours is designed to carry the vehicle load correctly, just as the manufacturer intended. For example, the early AMC vehicles were designed to hold the vehicle weight on the upper control arm, and that’s where we keep it. Some of our competitors transfer the weight to the lower control arm, which was never designed to carry the weight of the vehicle.

Want performance, handling, control and safety in a true bolt-in package? With our system, you get it all. Your front coil-over conversion system is complete …nothing else to buy.

AMC, American Motors, Rambler
Models Years
AMX 1970
Concord 1978-1983
Gremlin 1970-1978
Hornet 1970-1977
Javelin 1971-1974
Javelin AMX 1971-1974
Matador Coupe 1974-1979
Rebel/Rebel Machine 1970
Spirit 1979-1983
