4-Wheel Disc Master Kit, Wilwood, 11" Drilled/Slotted Rotors, 4-Piston Front & Rear, 1967-1983 AMC (For Control Freak IFS Only)

$2,930.61

type: Brakes
Vendor: Wilwood

Description:

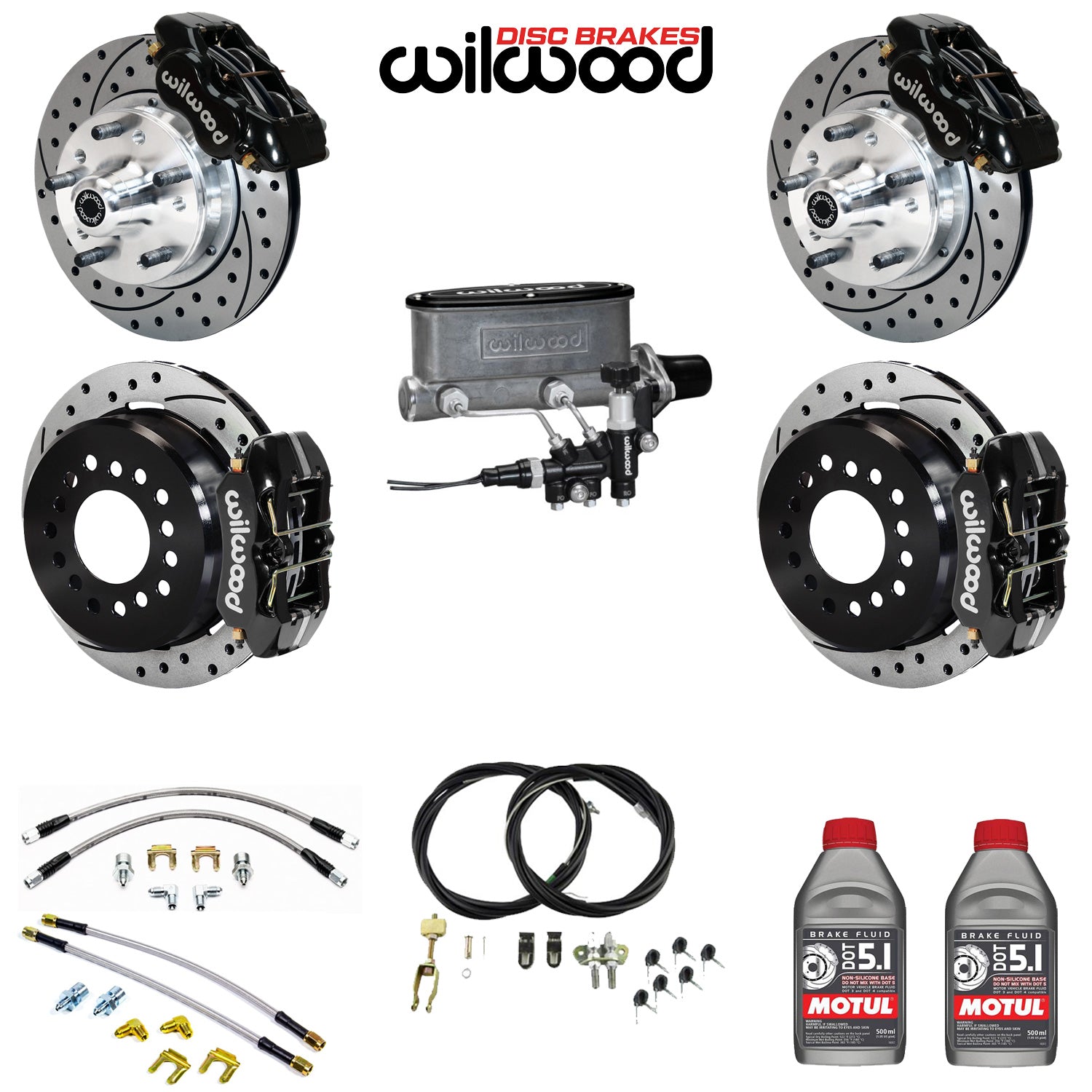

  • P/N:  AMC-11PSWMK-B - 11" Front 4-Piston Caliper / 11" Rear 4-Piston Caliper Disc Brake Conversion Kit For Control Freak IFS, Drilled & Slotted Black

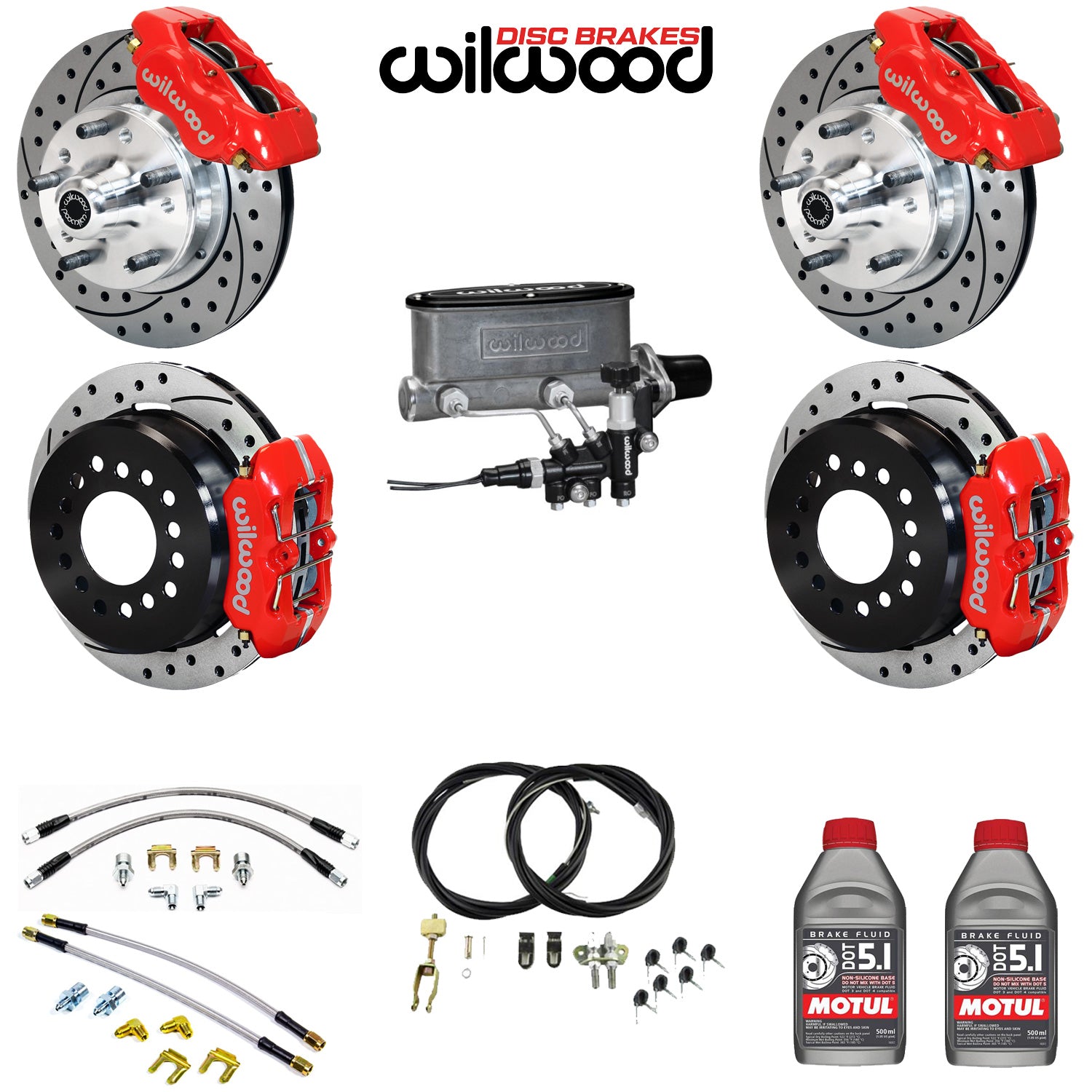

  • P/N:  AMC-11PSWMK-R - 11" Front 4-Piston Caliper / 11" Rear 4-Piston Caliper  Disc Brake Conversion Kit For Control Freak IFS, Drilled & Slotted Red

Here is the ONLY complete 11" front /rear Wilwood disc brake conversion kit for popular AMC cars equipped with the Control Freak IFS system.  This kit includes virtually everything you need to convert your front disc/rear drum or drum/drum brakes to Wilwood 4-wheel disc brakes.  The kit is designed for Wilwood forged Pro Spindles which are included in the Control Freak IFS systems).  This kit is designed to fit most 15" or larger wheels and uses 11" Wilwood drilled and slotted rotors with 4-piston forged aluminum front and rear calipers.  This kit will save over 60 lbs. over your factory components.  After installation, you can expect significantly shorter stopping distances for confident and safer driving fun.

  • Major Benefits:  Saves Up To 60 lbs., Shorter Stopping Distances, Fade-Free Braking Performance
  • Position: Front and rear
  • Front & Rear Rotor Included: Yes
  • Front & Rear Rotor Style: Solid surface, Dynamically Balanced
  • Front & Rear Rotor Construction: Vented, Drilled & Slotted
  • Front & Rear Rotor Diameter: 11.00 in./279.40mm
  • Front & Rear Rotor Thickness (in): 0.810 in.
  • Front & Rear Caliper Included: Yes (dust seals not included or available for retrofit)
  • Front & Rear Caliper Caliper Piston Quantity: 6 front, 4 rear
  • Front & Rear Caliper Material: Forged billet aluminum
  • Front & Rear Caliper Finish: Black anodized or red powder coated

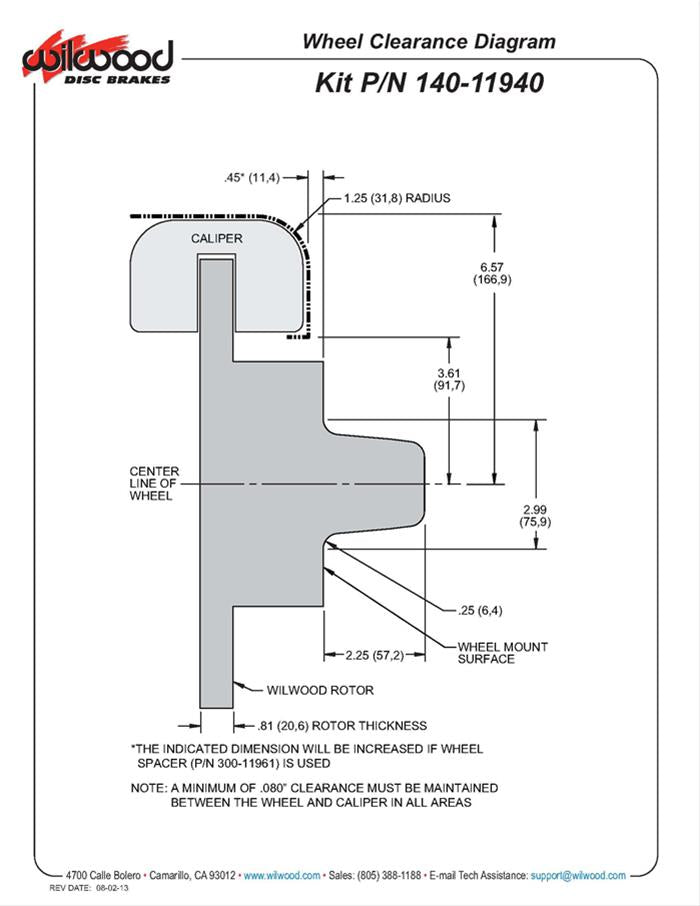

  • Minimum Recommended Wheel Diameter (in): 15 in. (will NOT fit factory or aftermarket 14" wheels, wheels for trunnion applications may require additional clearance from spacers, not included)
  • Front Spindles Included:  No, designed for Wilwood Pro Spindles (included in Control Freak IFS)
  • Mounting Brackets Included:  Yes
  • Master Cylinder Included: Yes
  • Fits Power Disc & Power Drum Brake Boosters:  Yes
  • Brake Booster Included: No
  • Brake Hoses Included: Yes
  • Brake Proportioning Valve & Mounting Bracket Included: Yes
  • Parking Brake Cable Kit Included:  Yes
  • Brake Fluid Included:  Yes, ships separately from brake kit
  • Quantity: Sold as a kit
  • Warranty: None
  • Country Of Origin: USA
  • Installation:  Professional installation by a qualified brake specialist, brake specialty shop, or high-performance custom shop highly recommended

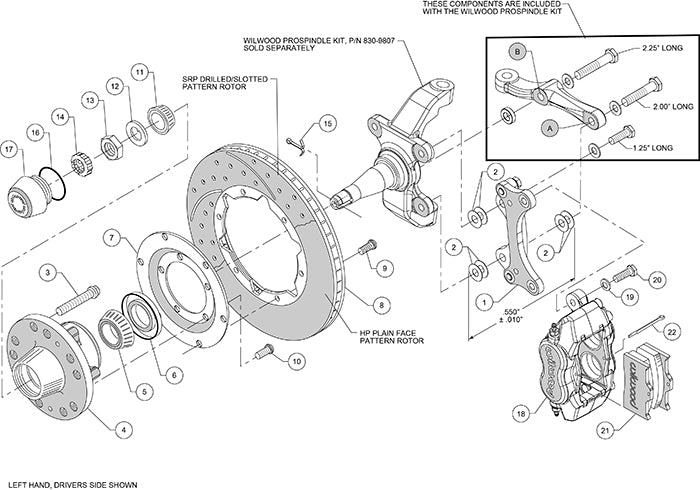

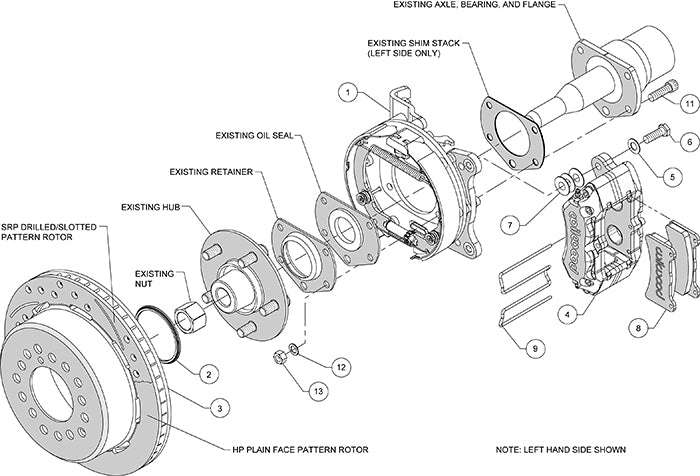

Click Link To View Step-By-Step Installation Instructions:

NOTE: Bedding-in new pads and rotors should be done carefully and slowly. Rapid heat build-up in the brake system can lead to warped rotors and or glazed brake pads. Most brake pad compounds will take up to 300-400 miles to fully develop an even transfer film on the rotors. After installing new pads make 6 to 10 stops from approximately 35 mph with moderate pressure. Make an additional two to three hard stops from approximately 40 to 45 mph. Do not allow the vehicle to come to a complete stop. When completed with this process, park the vehicle and allow the brakes to cool completely before driving on them again. Do not engage the parking brake until after this cooling process is complete.

AMC, American Motors, Rambler
Models Years
Ambassador w/Control Freak IFS 1969-1969
American w/Control Freak IFS 1964-1969
AMX w/Control Freak IFS 1968-1970
Concord w/Control Freak IFS 1978-1983
Gremlin w/Control Freak IFS 1970-1978
Hornet w/Control Freak IFS 1970-1977
Javelin w/Control Freak IFS 1968-1974
Javelin AMX w/Control Freak IFS 1971-1974
Matador Coupe w/Control Freak IFS 1974-1978
Marlin w/Control Freak IFS 1967
Rebel w/Control Freak IFS 1967-1970
Spirit w/Control Freak IFS 1979-1983
