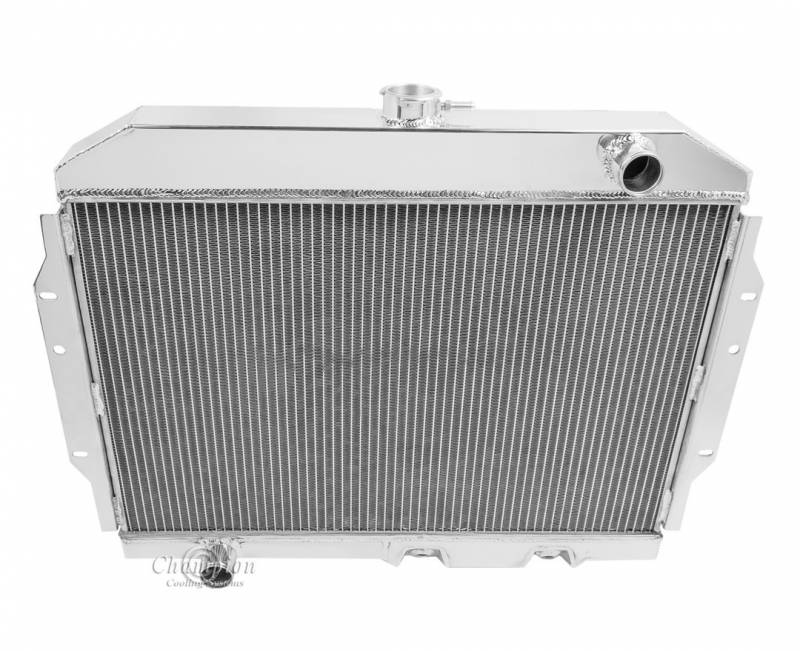

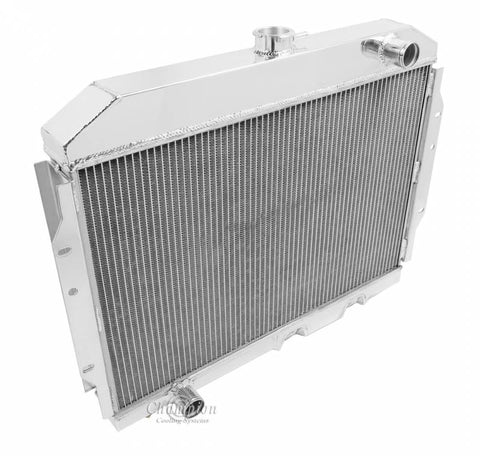

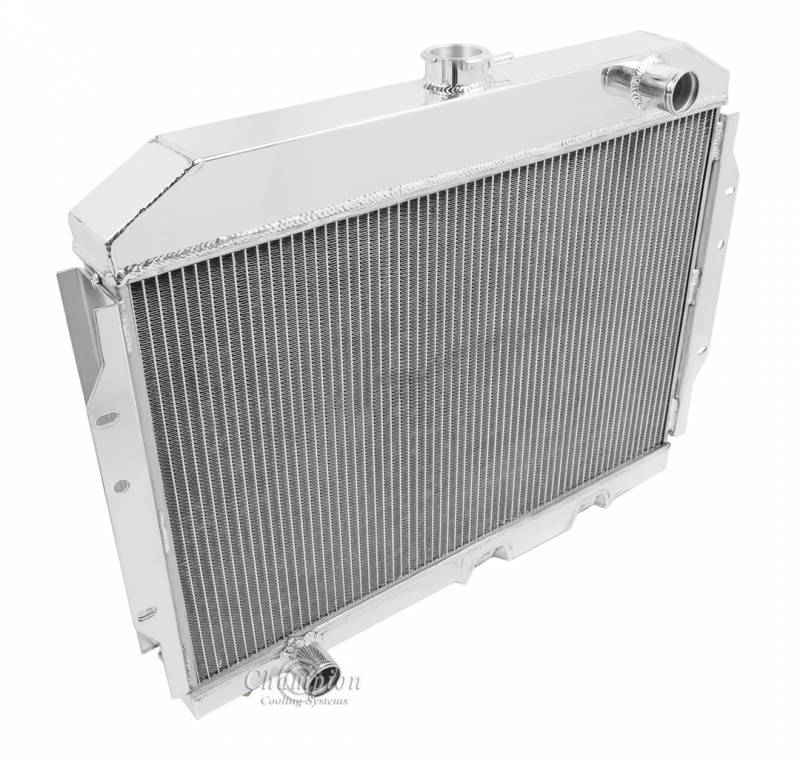

Radiator, Aluminum 3-Row, 1958-78 AMC, Rambler (Except Concord, Eagle, Gremlin, Hornet, Spirit, & Pacer) - Drop ships in approx. 1-3 weeks

Description:

• P/N:  AMC-CC407

This high-efficiency all-aluminum performance AMC radiator will end your cooling problems at a fraction of the weight & cost of brass copper radiators! This puts more money in your pocket. Each radiator includes a 16 lb radiator cap, a brass petcock valve, a transmission oil cooler, and an industry-leading limited lifetime manufacturer warranty.

Features:

• 3-row design supports up to 800 horsepower
• 40% better cooling than copper-brass radiators
• 50-75% lighter than copper-brass radiators
• Downflow style w/ high efficiency 14-16 louvered fins per inch
• 100% all-aluminum tanks, fittings, & billet fill neck, 100% TIG welded seams, brazed core, & no epoxy or sealers

Specifications:

• Includes: 16 Lb. radiator cap, brass petcock valve & automatic transmission cooler
• Core dimensions (H x W): 15 7/8" x 24 1/8"
• Overall dimensions (H x W): 23 1/4" x 27 1/4"
• Tank thickness:  2.5"
• Core thickness:  2"
• Hose locations:  Passenger - In / Driver - Out
• Hose fittings: 1 1/2" in / 1 1/2" out
• Trans cooler: 1/2-20 straight thread, G 1/4
• Mounting type: Bracket mount
• Shipping Dimensions: 34x29x9
• Shipping Weight:  27 lbs.
• Manufacturer Warranty: Limited Lifetime

Installation Notes:  Approximate installation time is 4-5 hours (experienced mechanic times listed, yours may take longer).  Professional installation recommended.  Overflow hose routes on the passenger side. Longer hose & custom routing required if using an overflow tank. Drilling of radiator core support required. Factory fan shroud may not work without drilling & custom foam sealing radiator to fan shroud...our aluminum dual fan shroud recommended (P/N AMC-FS407).  3 & 4 core versions may not clear aftermarket clutch fans, aftermarket Sanden A/C compressors, & aftermarket serpentine drive systems. These applications may require using dual electric cooling fans & fan shroud.
