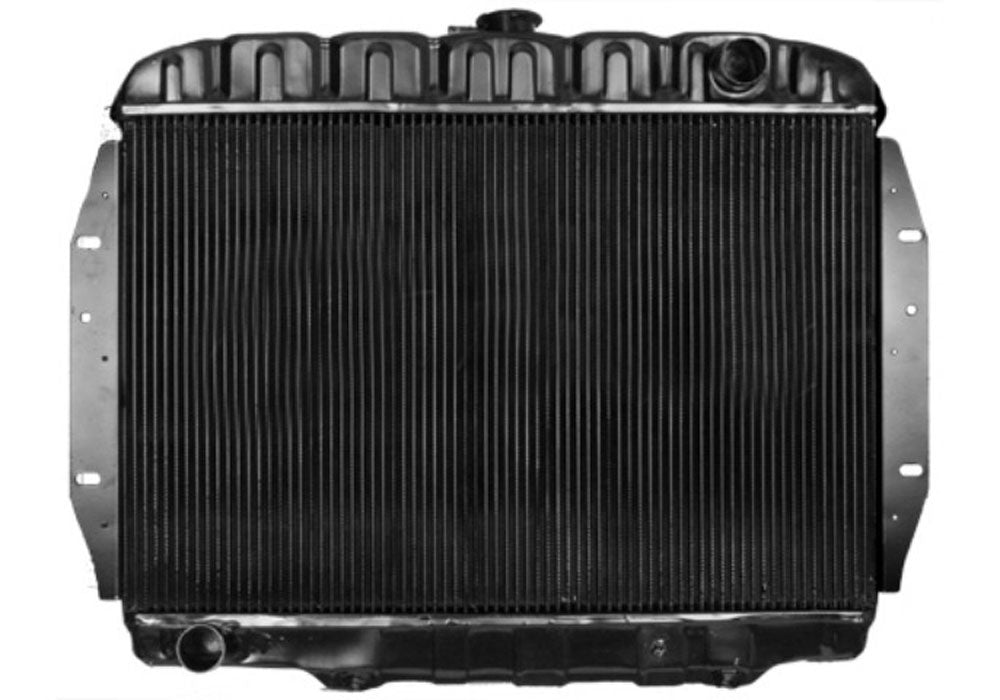

Radiator, Copper Brass, 3-Row Desert Cooler w/4-Row Capacity, OE Style Fit, 1972-74 AMC Javelin, Javelin AMX V-8, Inline 6


type: Radiator


  • P/N:  000810SNNZ - Manual Transmission
  • P/N:  000810ANNZ - Automatic w/Transmission Oil Cooler

3-Row Desert Cooler Radiators w/4-Row Capacity - Copper 80's style core with 1/2" tubes on 3/8" centers provides increased cooling efficiency without modifications to your AMC. Our 3-row high-efficiency desert cooler design offers more cooling efficiency than 4-row standard cores or aluminum cores due to tubes on 3/8" centers. Copper/brass construction to ensure dependability.


  • 3-row high-efficiency desert cooler design patterned after originals. Manufactured to order, please allow approximately 3-weeks for manufacturing plus shipping.

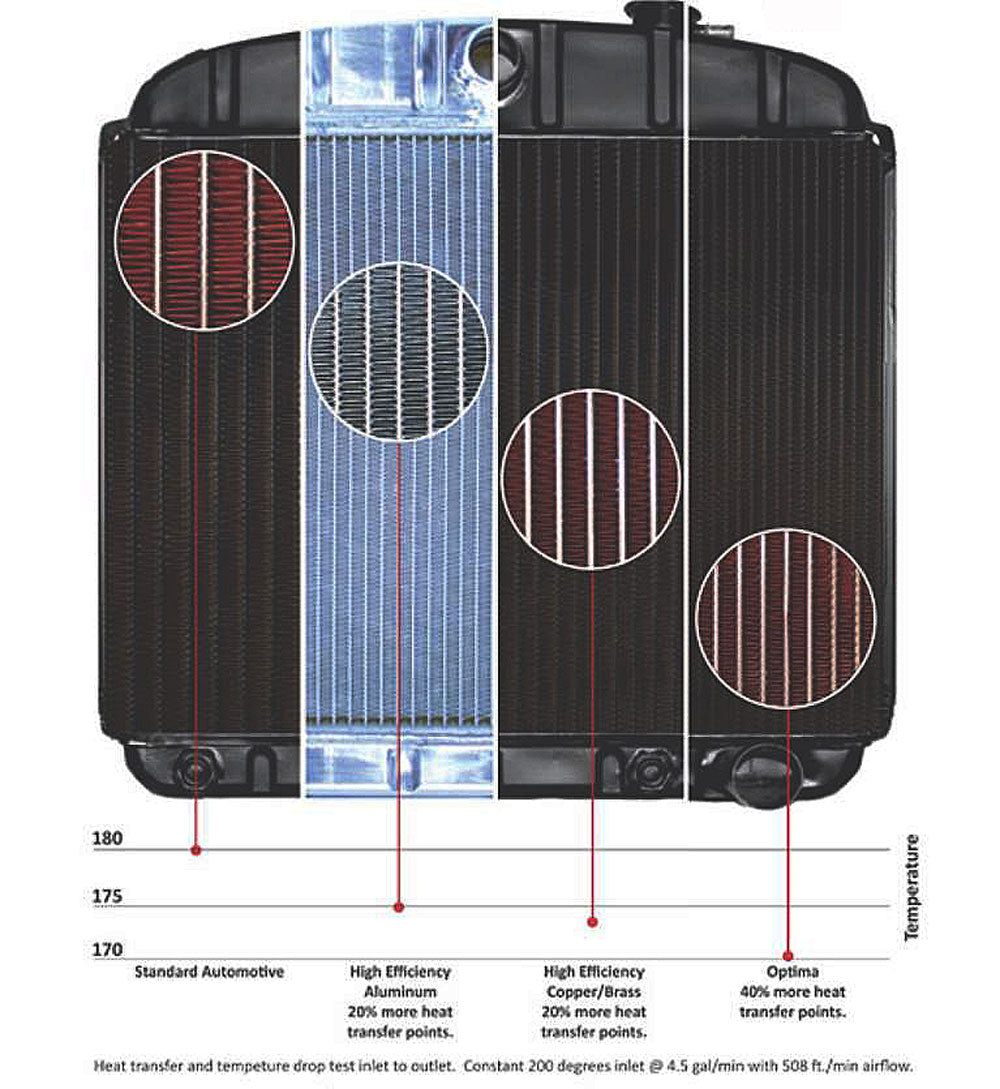

  • Offers more cooling efficiency than 4 row standard cores or aluminum cores due to tubes on 3/8" centers
  • Copper/brass construction, downflow style
  • 100% MIG welded seams, brazed core, & no epoxy or sealers
  • Made in the USA


  • Notes: Brackets To Engine Side
  • Material: Copper/Brass
  • Core Size: 15-7/8 x 24-1/2
  • Core Thickness:  2"
  • Available Rows: 3
  • Cooler Size: 12x1/8 NPT
  • Flow Type: Downflow
  • Inlet Size: 1-1/2"
  • Outlet Size: 1-1/2"
  • Box Dimensions:  34 x 29 x 9
  • Weight:  25 lbs.

      Installation Notes:  Approximate installation time is 3-4 hours (experienced mechanic times listed, yours may take longer).  Professional installation recommended.

      AMC, American Motors, Rambler
      Models Years
      Javelin V-8 1972-1974
      Javelin AMX V-8 1972-1974
      Javelin 199/232/258 Inline 6 1972-1974
