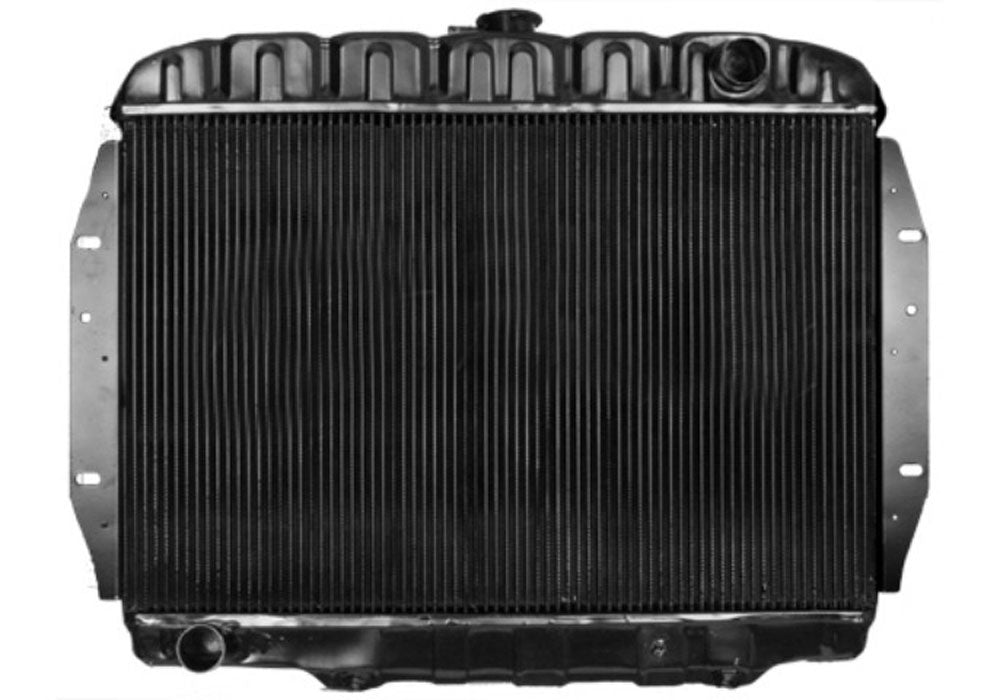

Radiator, Copper Brass, 3-Row Desert Cooler w/4-Row Capacity, OE Style Fit, 1968-71 AMC Javelin, Javelin AMX V-8, Inline 6 - Drop ships in approx. 4-6 weeks


type: Radiator


  • P/N:  000444SNNZ - Manual Transmission
  • P/N:  000444ANNZ - Automatic w/Transmission Oil Cooler

    3-Row Desert Cooler Radiators w/4-Row Capacity - Copper 80's style desert cooler core with 1/2" tubes on 3/8" centers provide increased cooling efficiency without modifications to your AMC. Our 3-row high-efficiency design offers more cooling efficiency than aluminum cores due to tubes on 3/8" centers. Copper/brass construction to ensure dependability.  Based on 60’s style core with 1/2” tubes on 9/16” centers; the standard automotive core units are drop-in, stock replacements.  Made from all new material they offer the highest quality for your stock application.


    • 3-row high-efficiency desert cooler design patterned after originals
    • Offers more cooling efficiency than aluminum cores due to tubes on 3/8" centers
    • Copper/brass construction, downflow style with standard core
    • 100% MIG welded seams, brazed core, & no epoxy or sealers
    • Made in the USA
    • Custom manufactured to order, please allow approximately 3-4 weeks for manufacturing plus shipping


    • Notes: Brackets To Engine Side
    • Material: Copper/Brass
    • Core Size: 15-7/8 x 24-1/2
    • Core Thickness:  2"
    • Available Rows: 3
    • Cooler Size:  6x1/8 NPT
    • Flow Type: Downflow
    • Inlet Size: 1-1/2"
    • Outlet Size: 1-1/2"
    • Boxed Dimensions:  34 x 29 x 9
    • Weight:  25 lbs.

        Installation Notes:  Approximate installation time is 3-4 hours (experienced mechanic times listed, yours may take longer).  Professional installation recommended.

        AMC, American Motors, Rambler
        Models Years
        AMX 1968-1970
        Javelin V-8 1968-1971
        Javelin AMX V-8 1971
        Javelin 199/232/258 Inline 6 1968-1971
