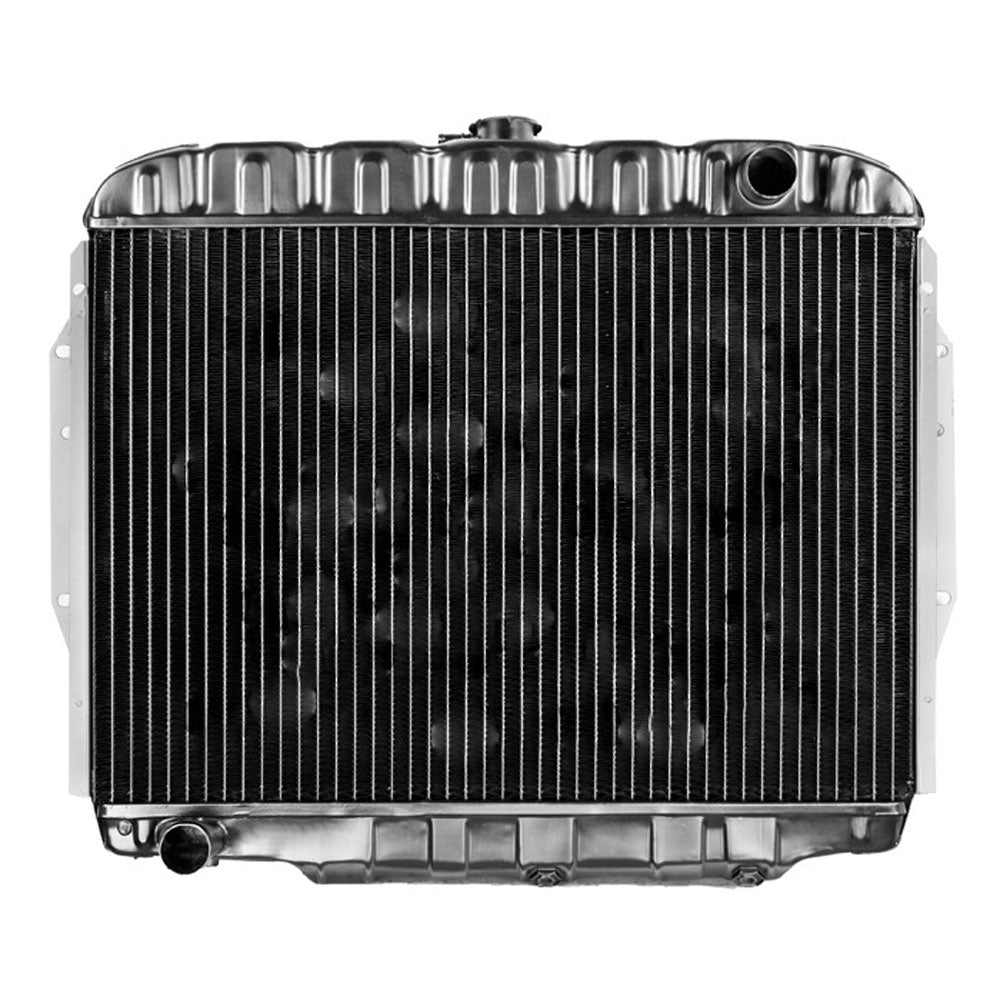

Radiator, Copper Brass, 3-Row Desert Cooler w/4-Row Capacity, OE Style Fit, 1965-71 Rambler, AMC V-8 & Inline 6 Ambassador, Gremlin, Hornet, Marlin

$579.97

type: Radiator

Description:

  • P/N:  000180AANZ - Automatic w/Transmission Oil Cooler w/Factory A/C
  • P/N:  000180ANHZ - Automatic w/Transmission Oil Cooler w/o Factory A/C
  • P/N:  000180SANZ - Manual w/o w/Transmission Oil Cooler w/ Factory A/C
  • P/N:  000180SNHZ - Manual w/o w/Transmission Oil Cooler w/o Factory A/C
      3-Row Desert Cooler Radiators w/4-Row Capacity - Copper 80's style core with 1/2" tubes on 3/8" centers provide increased cooling efficiency without modifications to your AMC. Our 3-row high-efficiency desert cooler design offers more cooling efficiency than 4-row standard cores or aluminum cores due to tubes on 3/8" centers. Copper/brass construction to ensure dependability.

        Features:

        • 3-row high-efficiency desert cooler design patterned after originals.

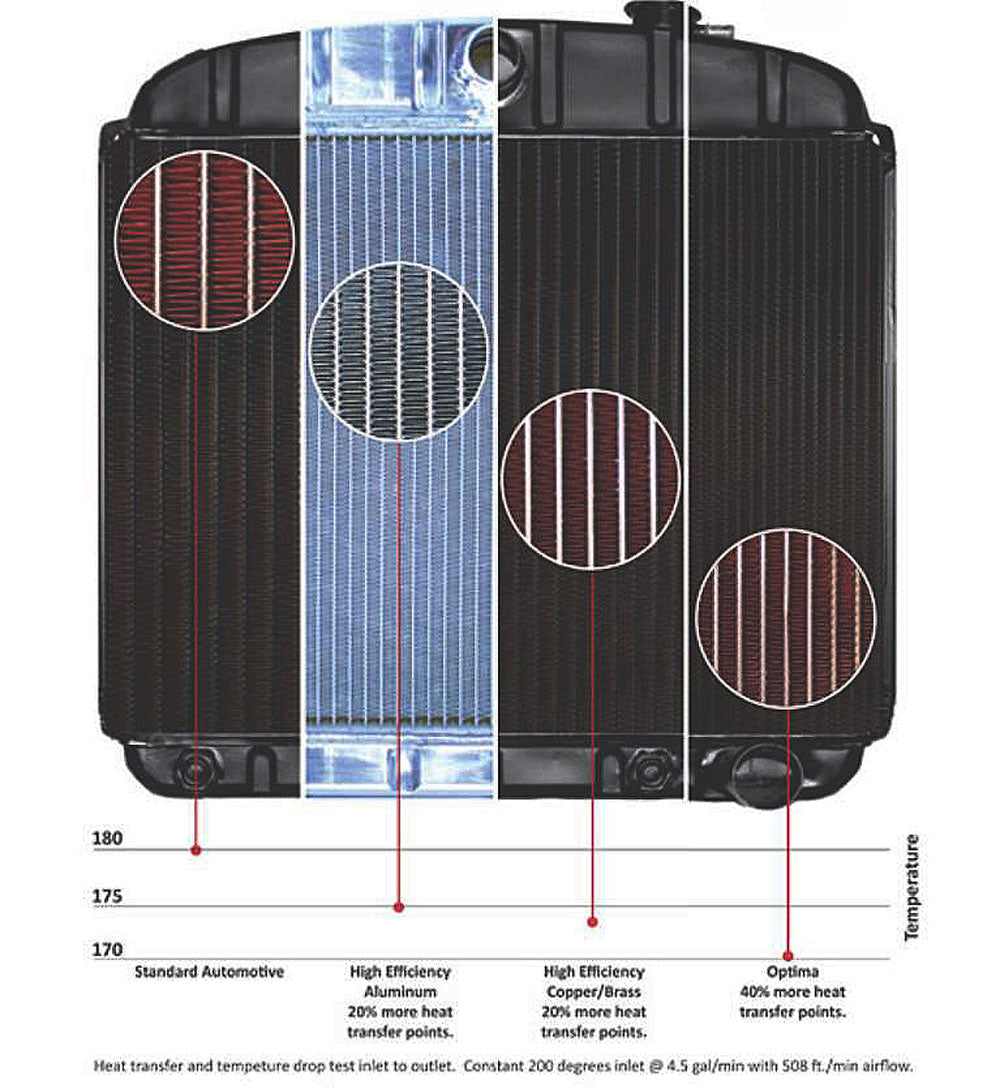

        • Offers more cooling efficiency than 4-row standard cores or aluminum cores due to tubes on 3/8" centers
        • Copper/brass construction, downflow style
        • 100% MIG welded seams, brazed core, & no epoxy or sealers
        • Made in the USA
        • Custom manufactured to order, please allow approximately 3-4 weeks for manufacturing plus shipping

        Specifications:

        • Notes:  Brackets To Grille Side
        • Material: Copper/Brass
        • Core Size: 16-3/4 x 24-1/2 (automatic transmission only)
        • Core Size:  14-1/2 x 24-1/2 (manual transmission w/o cooler & w/o factory A/C)
        • Core Thickness:  2"
        • Available Rows: 3
        • Cooler Size:  6x1/8 NPT (automatic transmission only)
        • Flow Type: Downflow
        • Inlet Size: 1-1/2"
        • Outlet Size: 1-1/2"
        • Box Dimensions:  34 x 29 x 9
        • Weight:  25 lbs.

            Installation Notes:  Approximate installation time is 3-4 hours (experienced mechanic times listed, yours may take longer).  Professional installation recommended.


            AMC, American Motors, Rambler
            Models Years
            Ambassador V-8 1965-1971
            Ambassador 232 Inline 6 1965-1971
            Gremlin 199/232/258 Inline 6 1970-1971
            Hornet V8 1970-1971
            Hornet 199/232 Inline 6 1970
            Marlin V8 1967
            Marlin 232 Inline 6 1967
