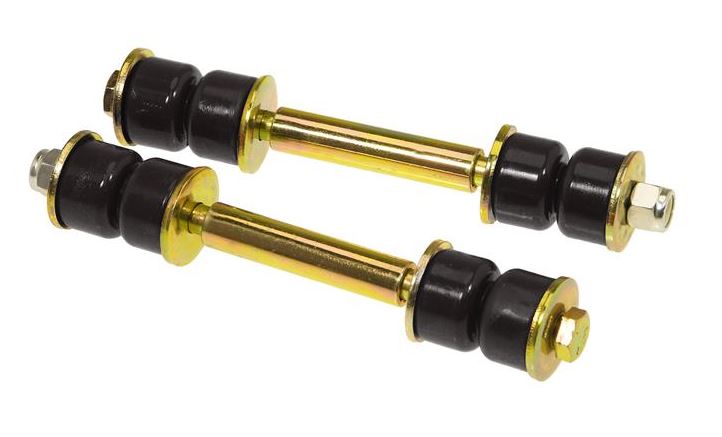

Sway Bar End Link Kit, Front, Urethane, 1964-88 AMC - Limited Lifetime Warranty



  • P/N 909-502
  • Improves handling, the effectiveness of OEM sway bars while reducing noise, & reduces "spongy ride"
  • Impervious to gas and oil
  • Will not rot or deteriorate
  • Made in the USA
  • Limited lifetime manufacturer warranty
  • Kit Box Dimensions:  10.5 x 2.2 x 2.2 inches
    AMC, American Motors, Rambler
    Models Years
    Ambassador 1964-1974
    American 1964-1969
    AMX 1968-1970
    AMX 1978
    Classic 1964-1966
    Concord 1978-1983
    Eagle 1980-1988
    Gremlin 1970-1978
    Hornet 1970-1977
    Javelin 1970-1974
    Javelin AMX 1971-1974
    Marlin 1965-1967
    Matador 1971-1978
    Rebel 1967-1970
    Spirit 1979-1983
    SX-4 1980-1983

    • Kit includes
      • End Link Washer and Nuts Kit
      • 8 of Flat Washers
      • 2 of Nylon Lock Nuts
      • 2 of Hex Cap Bolts  (3/8-16 X 7 inch)
      • 2 of Metal Sleeves (9/16 X .083 X 2.625 3/8MIN ID inch)
      • 8 of End Link Bushings (3/4 X 1.150 OD X 3/8 ID HD inch)

    Why Urethane?
    Production vehicles are built using rubber bushings in control arms, strut arms, leaf springs, body mounts, motor mounts, transmission mounts, sway bars and shocks. Additionally, rubber components can be found as coil spring pads, leaf spring pads and suspension bump stops. While rubber components offer a soft side, for typical driving conditions, they tend to deteriorate rapidly from exposure to the elements. This contributes to premature component failure, resulting in a “spongy” ride and loss of performance handling. Urethane is impervious to gas and oil and will not rot and is stronger than rubber.

    Improved Handling and Performance
    Due to the firmness of our specially formulated urethane, vehicle owners that have upgraded to Total Kits and Components have experienced better handling, cornering and a firmer suspension feel. American Performance urethane bushings are a “must” upgrade for High-Performance vehicles where improved performance and durability are desired.

    Installation Made Easy
    American Performance urethane products are made to exact specifications and are direct replacements for original rubber bushings and components. No special tools are required, standard tools and equipment replace factory units.

    American Performance has a complete shell program for most popular applications. Many of our control arm bushing kits come complete with new shells. However, in some applications, the original metal shells will be needed to be reused.

    Rubber Bushings?
    American Performance offers complete rubber bushing alternatives if you prefer original equipment quality and ride performance.
