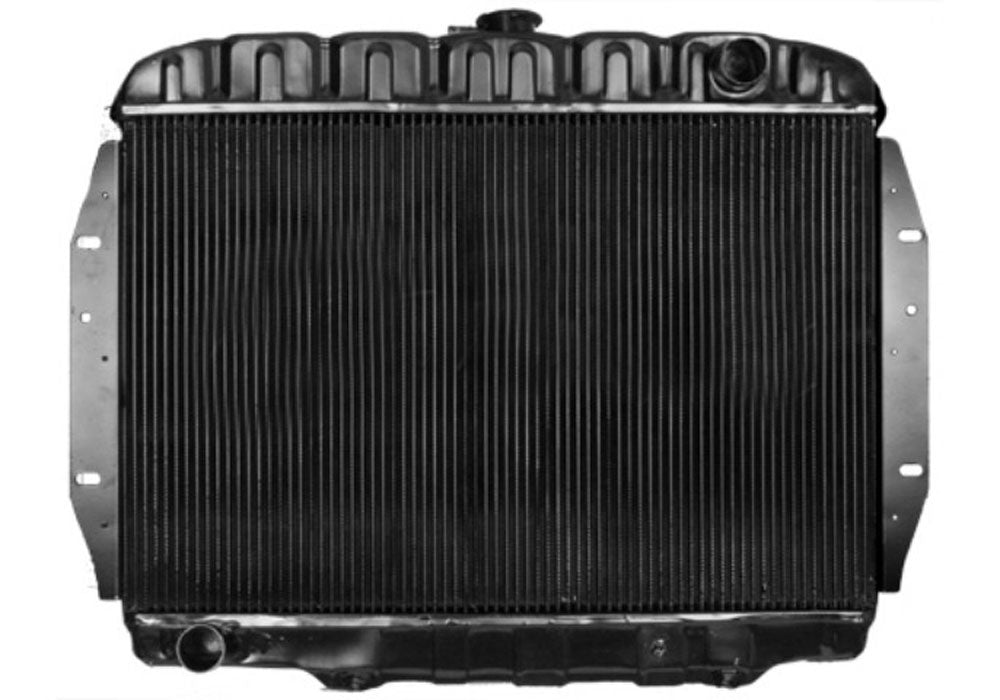

Radiator, Copper Brass, 3-Row Desert Cooler w/4-Row Capacity, OE Style Fit, 1958-71 AMC, Rambler Inline 6 American, Classic, Javelin, Marlin, Rambler, Rebel - Drop ships in approx. 4-6 weeks

$795.97

type: Unknown Type

Description:

  • P/N:  000031SNHZ - Manual Transmission
  • P/N:  000031ANHZ - Automatic w/Transmission Oil Cooler

3-Row Desert Cooler Radiators w/4-Row Capacity - Copper 80's style core with 1/2" tubes on 3/8" centers provides increased cooling efficiency without modifications to your AMC. Our 3-row high-efficiency desert cooler design offers more cooling efficiency than 4-row standard cores or aluminum cores due to tubes on 3/8" centers. Copper/brass construction to ensure dependability.

Features:

  • 3-row high-efficiency desert cooler design patterned after originals.

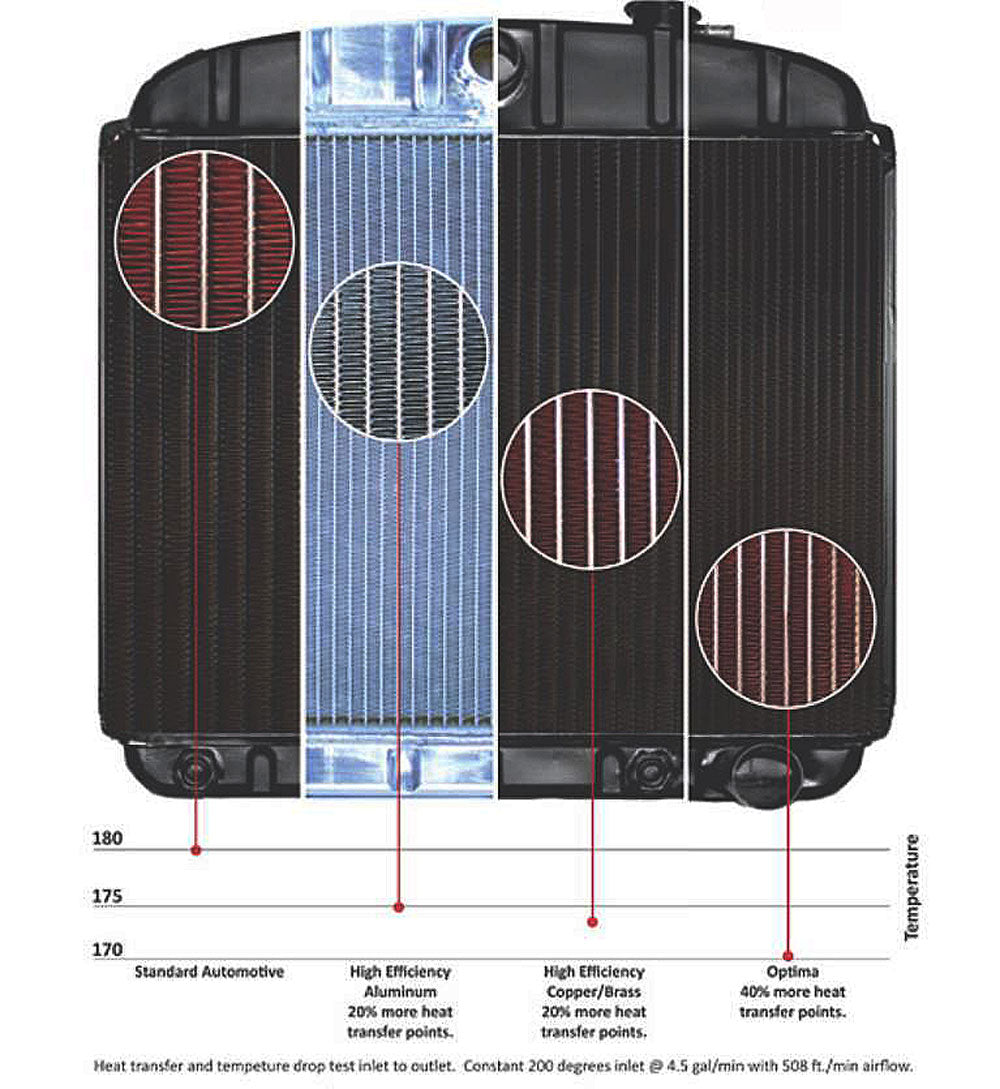

  • More cooling efficiency than 4-row standard cores or aluminum cores due to tubes on 3/8" centers
  • Copper/brass construction, downflow style
  • 100% MIG welded seams, brazed core, & no epoxy or sealers
  • Made in the USA
  • Custom manufactured to order, please allow approximately 3-4 weeks for manufacturing plus shipping.

Specifications:

  • Notes: Brackets To Engine Side
  • Material: Copper/Brass
  • Core Size: 16-3/4 x 24-1/2
  • Core Thickness:  2"
  • Available Rows: 3
  • Cooler Size:  6x1/8 NPT
  • Flow Type: Downflow
  • Inlet Size: 1-1/2"
  • Outlet Size: 1-1/2"
  • Boxed Dimensions:  34 x 29 x 9
  • Weight:  25 lbs.

      Installation Notes:  Approximate installation time is 3-4 hours (experienced mechanic times listed, yours may take longer).  Professional installation recommended.

      AMC, American Motors, Rambler
      Models Years
      American w/199-232 Inline 6 1966-1969
      Classic w/196 Inline 6 1961-1962
      Classic w/199/232 Inline 6 1964-1966
      Javelin w/199/232/258 Inline 6 1968-1971
      Marlin w/199/232 Inline 6 1965-1966
      Rambler w/196 Inline 6 1958-1960
      Rebel w/232 Inline 6 1967-1970
