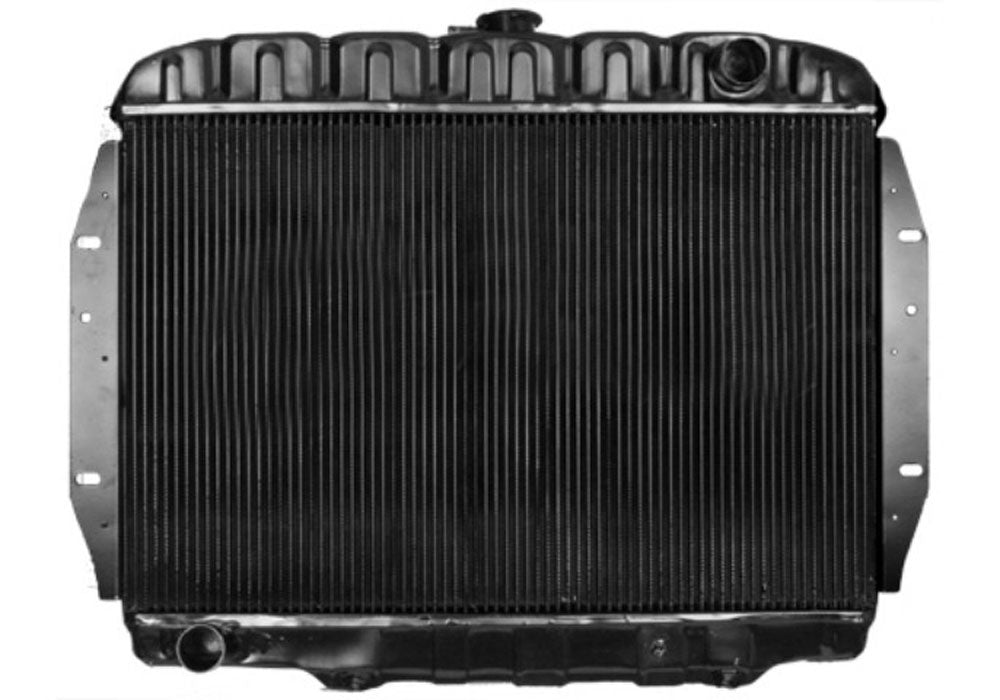

Radiator, Copper Brass, 3-Row Desert Cooler w/4-Row Capacity, OE Style Fit, 1958-71 AMC, Rambler V-8, Inline 6 Ambassador, American, Classic, Marlin, Matador, Rebel

$614.97

type: Radiator

Description:

  • P/N:  000070SNHZ - Manual Transmission
  • P/N:  000070ANHZ - Automatic w/Transmission Oil Cooler
  •

    3-Row Desert Cooler Radiators w/4-Row Capacity - Copper 80's style core with 1/2" tubes on 3/8" centers provide increased cooling efficiency without modifications to your AMC. Our 3-row high-efficiency desert cooler design offers more cooling efficiency than 4-row standard cores or aluminum cores due to tubes on 3/8" centers. Copper/brass construction to ensure dependability.

    Features:

    • 3-row high-efficiency desert cooler design patterned after originals.

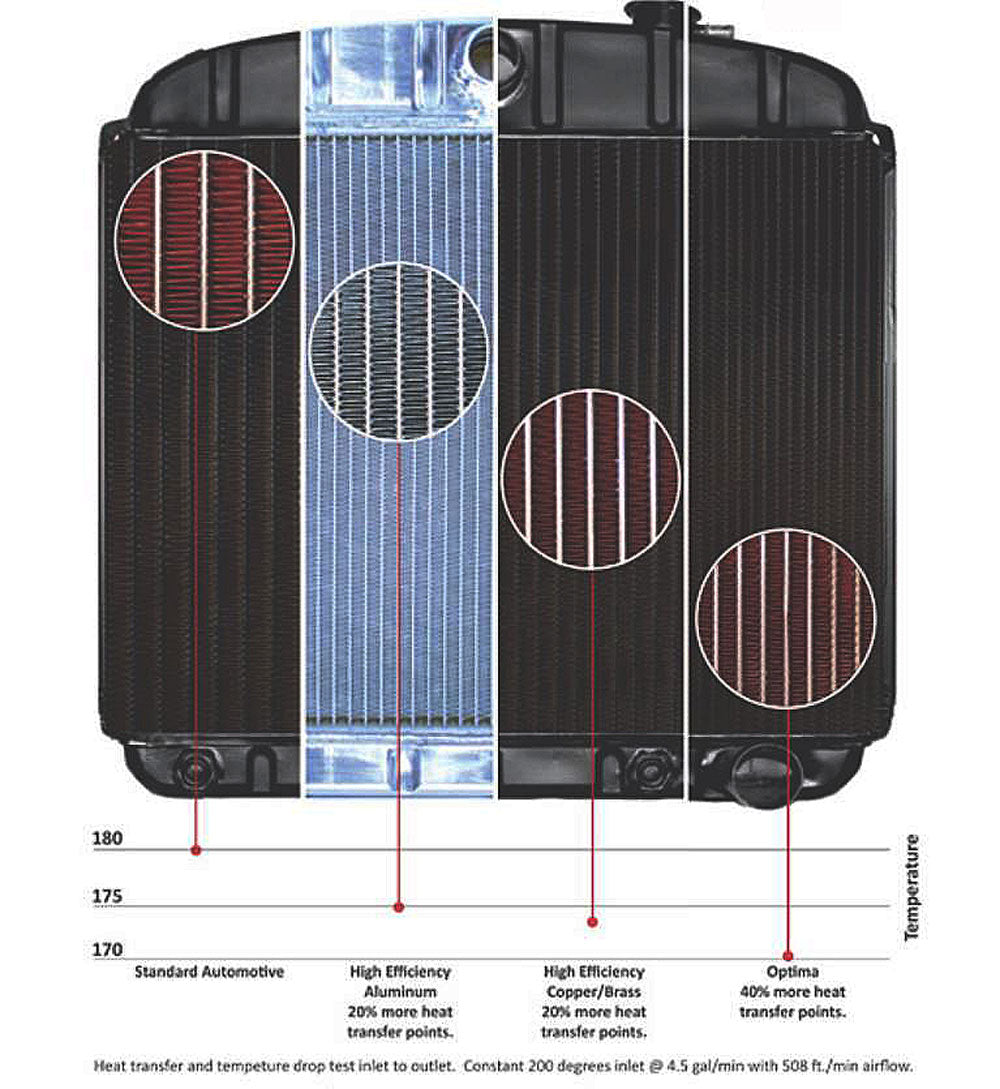

    • Offers more cooling efficiency than 4-row standard cores or aluminum cores due to tubes on 3/8" centers
    • Copper/brass construction, downflow style
    • 100% MIG welded seams, brazed core, & no epoxy or sealers
    • Made in the USA
    • Custom manufactured to order, please allow approximately 3-4 weeks for manufacturing plus shipping.

    Specifications:

    • Notes: Brackets To Engine Side
    • Material: Copper/Brass
    • Core Size: 16-3/4 x 24-1/2
    • Core Thickness:  2"
    • Available Rows: 3
    • Cooler Size:  6x1/8 NPT
    • Flow Type: Downflow
    • Inlet Size: 1-1/2"
    • Outlet Size: 1-1/2"
    • Box Dimensions:  34 x 29 x 9
    • Weight:  25 lbs.

        Installation Notes:  Approximate installation time is 3-4 hours (experienced mechanic times listed, yours may take longer).  Professional installation recommended.


        AMC, American Motors, Rambler
        Models Years
        Ambassador w/V-8 1958-1964
        American 196 Inline 6 1958-1965
        American V-8 1966-1969
        American 199/232 Inline 6 1966-1969
        Classic 196 Inline 6 1961-1964
        Classic 199/232 Inline 6 1964-1966
        Classic V-8 250 1961
        Classic V-8 287 1963-1964
        Classic V-8 287/327 1965-1966
        Marlin V-8 1965-1966
        Matador V8 1971
        Matador 232/258 Inline 6 1971
        Rebel V-8 1967-1970
        Rebel V-8 1958-1961
