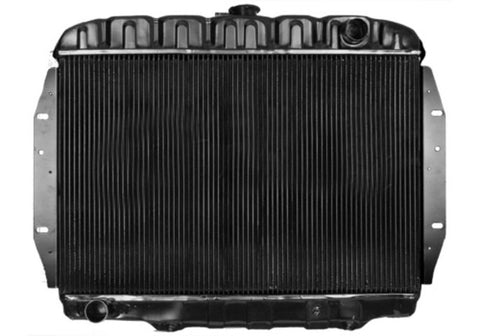

Radiator, Copper Brass, 3-Row Desert Cooler w/4-Row Capacity, OE Style Fit, 1958-71 AMC, Rambler V-8, Inline 6 Ambassador, American, Classic, Marlin, Matador, Rebel - Drop ships in approx. 4-6 weeks
type: Radiator
Vendor: U.S. Radiator
Description:
3-Row Desert Cooler Radiators w/4-Row Capacity - Copper 80's style core with 1/2" tubes on 3/8" centers provide increased cooling efficiency without modifications to your AMC. Our 3-row high-efficiency desert cooler design offers more cooling efficiency than 4-row standard cores or aluminum cores due to tubes on 3/8" centers. Copper/brass construction to ensure dependability.
Features:
- 3-row high-efficiency desert cooler design patterned after originals.
- Offers more cooling efficiency than 4-row standard cores or aluminum cores due to tubes on 3/8" centers
- Copper/brass construction, downflow style
- 100% MIG welded seams, brazed core, & no epoxy or sealers
- Made in the USA
- Custom manufactured to order, please allow approximately 3-4 weeks for manufacturing plus shipping.
Specifications:
- Notes: Brackets To Engine Side
- Material: Copper/Brass
- Core Size: 16-3/4 x 24-1/2
- Core Thickness: 2"
- Available Rows: 3
- Cooler Size: 6x1/8 NPT
- Flow Type: Downflow
- Inlet Size: 1-1/2"
- Outlet Size: 1-1/2"
- Box Dimensions: 34 x 29 x 9
- Weight: 25 lbs.
Installation Notes: Approximate installation time is 3-4 hours (experienced mechanic times listed, yours may take longer). Professional installation recommended.
| AMC, American Motors, Rambler | |
|---|---|
| Models | Years |
| Ambassador w/V-8 | 1958-1964 |
| American 196 Inline 6 | 1958-1965 |
| American V-8 | 1966-1969 |
| American 199/232 Inline 6 | 1966-1969 |
| Classic 196 Inline 6 | 1961-1964 |
| Classic 199/232 Inline 6 | 1964-1966 |
| Classic V-8 250 | 1961 |
| Classic V-8 287 | 1963-1964 |
| Classic V-8 287/327 | 1965-1966 |
| Marlin V-8 | 1965-1966 |
| Matador V8 | 1971 |
| Matador 232/258 Inline 6 | 1971 |
| Rebel V-8 | 1967-1970 |
| Rebel V-8 | 1958-1961 |
